D-Sub Crimp

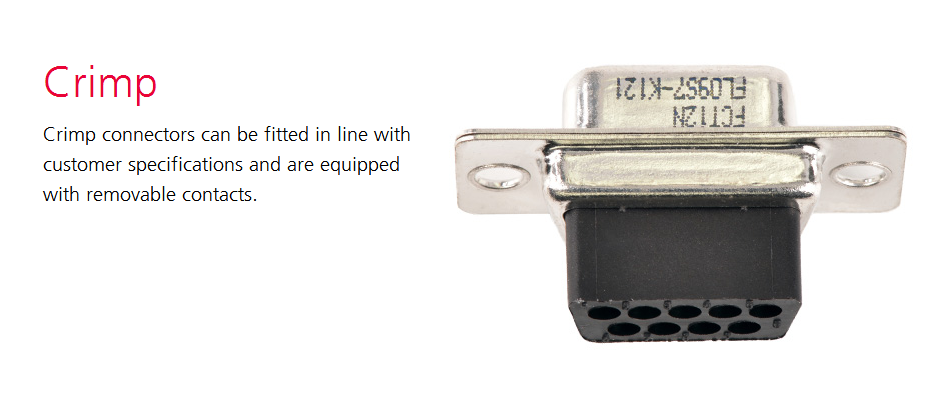

Crimp 系列提供9、15、25、37、50芯選擇，針可插入或拆卸，額定電流：5A,測試電壓：1200V/1MIN。
特點：
提供不帶轉接的接觸點
配備更大塑料絕緣體，使觸點具有更好強度和耐熱性
插針為單獨插入或取出
可提供帶酒窩屏蔽性更高的型號
提供多種固定組件
D-Sub Crimp
|
number of pins |
type |
|
9 |
FL09P7… |
|
15 |
FL15P7… |
|
25 |
FL25P7… |
|
37 |
FL37P7… |
|
50 |
FL50P7… |
Pins
|
Wire Size (AWG) |
Order Number |
|
18-22 |
FK20S18-02V... FK20S18-13V FK20PL18-02V... FK20SL18-02V... |
|
20-24 |
FK20P-13V... FK20S-13V... FK20PL-02V... FK20SL-02V... FK20PL-08V... FK20SL-08V... |
|
26-28 |
FK20P -13V... FK20S -13V... FK20PL -02V... FK20SL -02V... |
|
Wire Size (AWG) |
Order Number |
|
18-22 |
FK20S18-02V... FK20S18-13V FK20PL18-02V... FK20SL18-02V... |
|
20-24 |
FK20P-13V... FK20S-13V... FK20PL-02V... FK20SL-02V... FK20PL-08V... FK20SL-08V... |
|
26-28 |
FK20P -13V... FK20S -13V... FK20PL -02V... FK20SL -02V... |
|
Wire Size (AWG)
|
Order Number |
|
20-24 |
P7L S7L P7LR S7LR P7L-K176 S7L-K176 P7LR-K176 S7LR-K176 P7LSR-K176 S7LSR-K176 |
|
24-28 |
P7L26 S7L26 P7LR26 S7LR26 P7L26-K176 S7L26-K176 P7LR26-K176 S7LR26-K176 P7LSR26-K176 S7LSR26-K176 |
技術參數：
FL:
Insulator ： black thermoplastic, glass ?lled, (UL94V-0)
Relative temperature index according to UL 74 B ：115 °C (239 °F)
Heat de?ection temperature limit according to DIN 41 HDT/A ：185 °C (365 °F)
Sub temperature limit ：-55 °C (-67 °F)
FU：
Insulator ： green, thermoplastic, glass ?lled (UL94V-0)
Relative temperature index according to UL 74 B ：130 °C (266°F)
Heat de?ection temperature limit according to DIN 41 HDT/A ： 197 °C (386,6 °F)
Sub temperature limit ：-95 °C (-67 °F)
電氣參數：
Current rating ：5A
Test voltage between contacts / shell and contact ：1200 V / 1 min.
Meets transitional resistance requirements per contact pair in accordance with:
1、MIL-C- 2430 / MIL-C- 24308： ≤7.3 mΩ
2、DIN 41652 / DIN 41652： ≤ 10 m?
Insulation resistance between contacts：≥ 5000 M?
Volume resistivity (ASTM-D257)：101 ? cm
Dielectric strength：50 kV / mm
