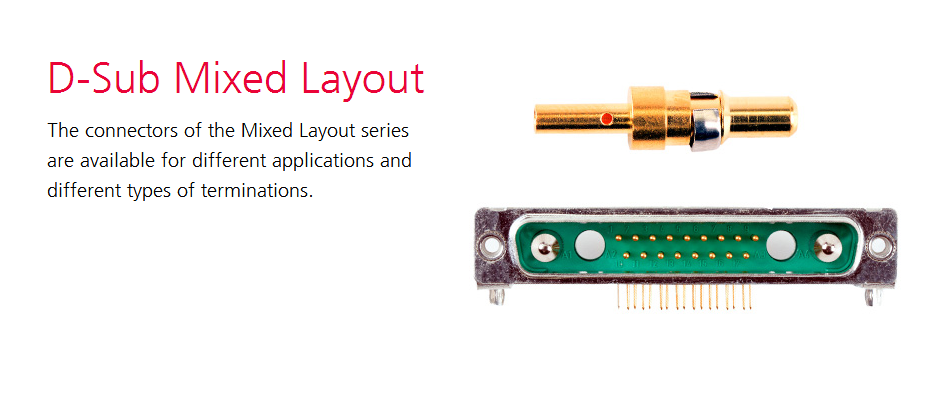

D-Sub Mixed Layout
D-Sub Mixed Layout混合系列 高達40A，3KV的高壓觸點、氣動觸點 可焊接或直接與PCB連接，或可插拔的壓接端子 可與密封塞，導銷，導板，罩，彈簧鎖和滑鎖多個組件組合 帶酒窩、屏蔽
特點：
混合連接器
高達40A，3KV的高壓觸點、氣動觸點
可焊接或直接與PCB連接，或可插拔的壓接端子
可與密封塞，導銷，導板，罩，彈簧鎖和滑鎖多個組件組合
帶酒窩、屏蔽
D-Sub Mixed Layout
|
number of pins |
type |
|
F1W1, |
FMW1W1P5AR…FMW1W1S5AR… |
|
FM5W1, |
FMW5W1P5AR…FMW5W1S5AR… |
|
F2W2, |
FMW2W2P5AR…FMW2W2S5AR… |
|
F2W2...C |
FMW2W2P5AR…CFMW2W2S5AR…C |
|
FM3W3 |
FMW3W3P5AR...FMW3W3S5AR |
|
FM3W3...C |
FMW3W3P5AR...CFMW3W3S5AR...C |
|
FM7W2 |
FMW7W2P5AR...FMW7W2S5AR... |
|
FM11W1 |
FMW11W1P5AR...FMW11W1S5AR... |
|
FM5W5 |
FMW5W5P5AR...FMW5W5S5AR... |
|
FM9W4 |
FMW9W4P5AR...FMW9W4S5AR... |
|
FM13W3 |
FMW13W3P5AR...FMW13W3S5AR... |
|
FM17W2 |
FMW17W2P5AR...FMW17W2S5AR... |
|
FM21W1 |
FMW21W1P5AR...FMW21W1S5AR... |
|
F7W7 |
FMW7W7P5AR...FMW7W7S5AR... |
|
FM24W7 |
FMW24W7P5AR...FMW24W7S5AR... |
|
FM36W4 |
FMW36W4P5AR...FMW36W4S5AR... |
|
FM43W2 |
FMW43W2P5AR...FMW43W2S5AR... |
|
FM47W1 |
FMW47W1P5AR...FMW47W1S5AR... |
PINS
|
Order Number
|
Au (Over Ni)
|
|
FK20S18-02V..
|
0,2 μm (8 microinches)
|
|
FK20PL18-02V...
|
0,2 μm (8 microinches)
|
|
FK20SL18-02V...
|
0,2 μm (8 microinches)
|
|
FK20P-13V...
|
1,3 μm (51 microinches)
|
|
FK20S-13V...
|
1,3 μm (51 microinches)
|
|
FK20PL-02V...
|
0,2 μm (8 microinches)
|
|
FK20SL-02V...
|
0,2 μm (8 microinches)
|
|
FK20PL-08V...
|
0,8 μm (31 microinches)
|
|
FK20SL-08V...
|
0,8 μm (31 microinches）
|
|
FK20P26-13V...
|
1,3 μm (51 microinches)
|
|
FK20S26-13V...
|
1,3 μm (51 microinches)
|
|
FK20PL26-02V...
|
0,2 μm (8 microinches)
|
|
FK20SL26-02V...
|
0,2 μm (8 microinches)
|
技術參數：
FL
Insulator : black thermoplastic, glass ?lled (UL94V-0)
Relative temperature index according to UL 746 B ： 239 °F
Heat de?ection temperature limit according to DIN 53461 HDT/A ：365 °F
Sub temperature limit ： -67 °F
Shell plating (standard）：Yellow chromate over zinc plating
FU：
Insulator ： green, thermoplastic, glass ?lled (UL94V-0)
Relative temperature index according to UL 746 B ： 266 °F
Heat de?ection temperature limit according to DIN 53461 HDT/A ：386,6 °F
Sub temperature limit ：-67 °F
Shell plating (standard）：Yellow chromate over zinc plating
電氣參數：
urrent rating at room temperature： 5A
Test voltage between 2 contacts or shell and contact： 1000V 50Hz / 1 min
Resistance between mated contacts ：≤ 10 mΩ
Insulation resistance between contacts ：≥ 5000 MΩ
Dielectric strength ：50 kV / mm
