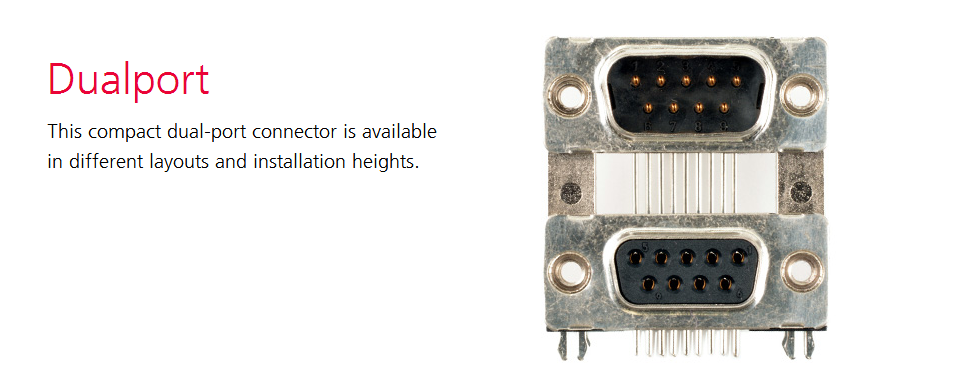

D-Sub Dualport
D-Sub Dualport 雙接頭連接器，提供9、15、25、37芯多種尺寸選擇 四種安裝高度選擇 可選擇加殼體 帶酒窩、屏蔽功能
特點：
雙接頭連接器
四種安裝高度選擇
可選擇加殼體
帶酒窩、屏蔽功能
D-Sub Dualport
|
number of pins |
type |
|
9 |
FDT09PG2LLK, FDT09SG2LLK, FDT09PSG2LLK. FDT09SPG2LLK |
|
15 |
FDT15PG2LLK, FDT15SG2LLK, FDT15PSG2LLK, FDT15SPG2LLK, |
|
25 |
FDT25PG2LLK, FDT25SG2LLK, FDT25PSG2LLK, FDT25SPG2LLK, |
|
37 |
FDT37SG2LLK, FDT37PG2LLK, FDT37PSG2LLK, FDT37SPG2LLK, |
技術(shù)參數(shù)：
Insulator ： Polyester, glass ?lled (UL94V-0), black
Relative temperature index according to UL 74 B ：130 °C (266 °F)
Heat de?ection temperature limit according to DIN 41 HDT/A ：210 °C (410 °F)
Sub temperature limit ：- 55°C (-67 °F)
Shell plating (standard) ： Tin plated over nickel, pin connector shell with dimples
Contact material ： Copper alloy
電氣參數(shù)：
Current rating ：5 A
Test voltage between contacts / shell and contact ：1200 V / 1 min
Meets transitional resistance requirements per contact pair in accordance with DIN 41 right angled contacts ：≤25 m?
Insulation resistance between contacts ：≥ 5000 M?
Dielectric strength ：50 kV / mm
