923

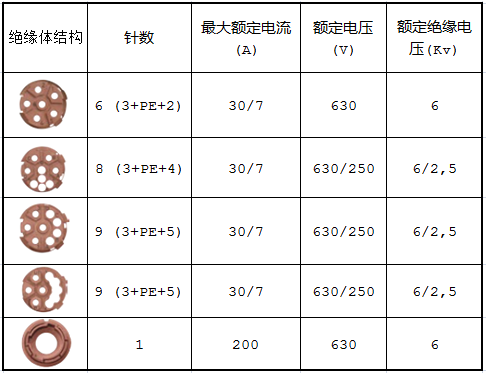

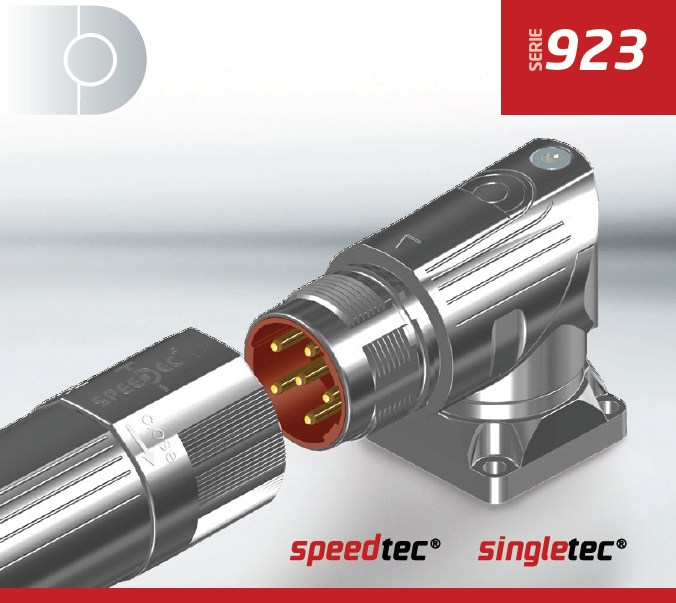

M23動力系列，提供1、6、8、9、9B針數(shù)選擇，額定電流：7A-200A，額定電壓：250V-630V，針：φ4,2 – φ 17,0 mm，IP等級：66/67，屏蔽類型：EMC
產(chǎn)品技術(shù)參數(shù)：
Technical data：
Temperature range -20° C to 130° C
clamping range ? 4.2 – ?17.0 mm
protection type IP 66/67
Electrical Data：
mating cycles 500
Values according to VDE 0110/EN 61984, part 6.19.2.2：
pollution degree 3
overvoltage category III
max. height for operation 2000 m
Material：
housing brass, aluminium, zinc diecast; nickel-plated
clamp ring zinc diecast,rass; nickel-plated
insulation insert PA/PBT, UL 94/V0
sealing FPM/EPDM
